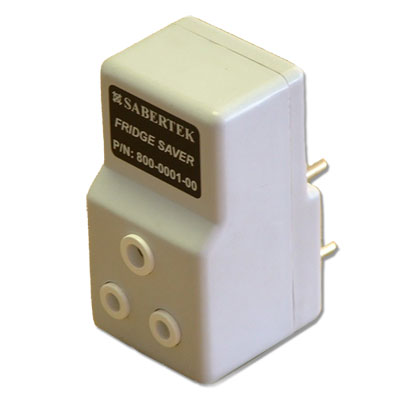

This small unit serves to protect any household compressor-based appliance (for example refrigerators, freezers or air conditioners) against power fluctuations or interruptions. When the supply voltage falls below the pre-set limit, the Fridge Saver interrupts power to the appliance for a period of approximately 90-100 seconds. This provides enough time for the pressure in the system to decrease before re-starting the compressor, increasing the lifespan of the compressor motor.

SPECIFICATIONS

Nominal Input Voltage : 220VAC
Maximum Voltage : 270VAC
Low Voltage Cutout : 175VAC
Time Delay : 90 – 100 seconds typ.

FEATURES

Automatic undervoltage cut-out
Delays startup with 90 seconds after power-up
Protects compressor motor against the strain of starting against pressure
Compact dimensions
No user adjustment or wiring necessary

DIMENSIONS

Delay time and undervoltage level can be changed at production time if necessary.

OPTIONAL FEATURES

Delay time and under-voltage level can be changed at production time if necessary.
